This page is for Modellers to share their photos of their projects.

These photos have been sent to us, so that we can share some of the building projects undertaken by fellow modellers in the rail hobby.

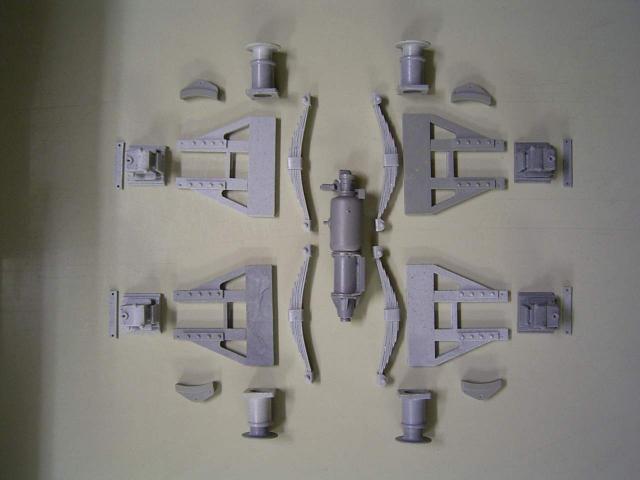

4 Wheel Underframe Parts

This photo was kindly supplied by Howard Armstrong

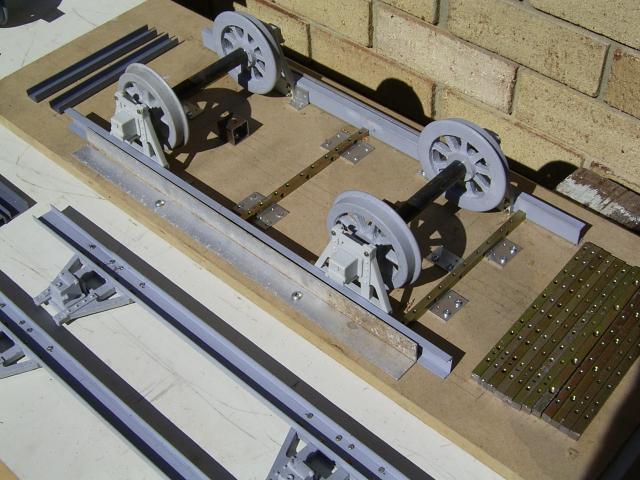

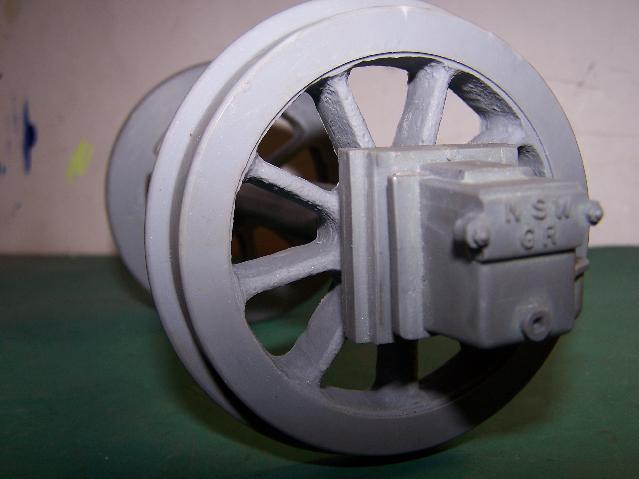

18 Foot Underframe being Assembled

This photo was kindly supplied by Howard Armstrong

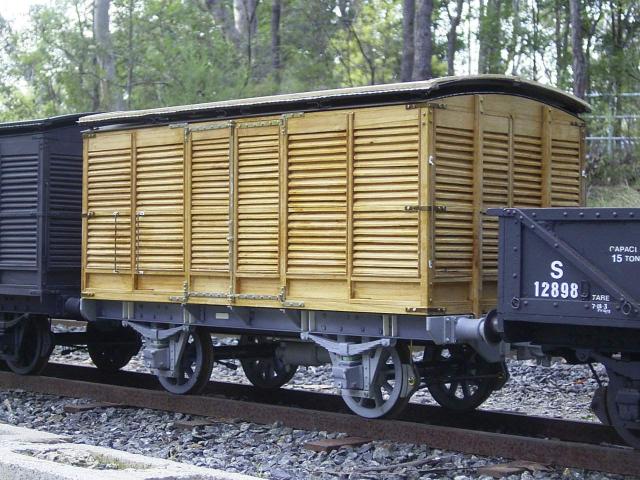

18 Foot Van ready for Paint

This photo was kindly supplied by Howard Armstrong

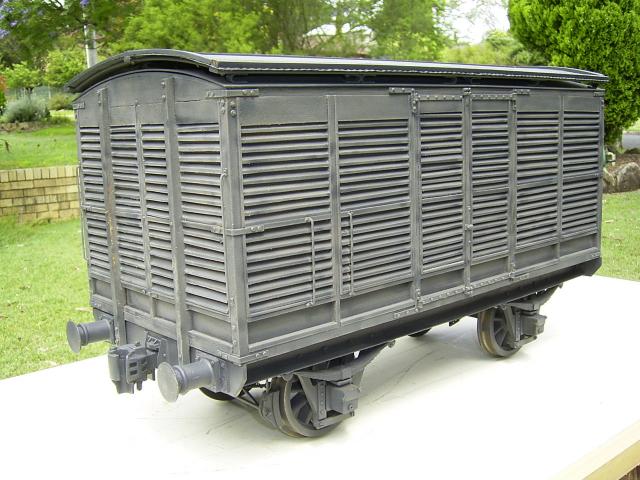

18 Foot Louvre Van Painted

This photo was kindly supplied by Howard Armstrong

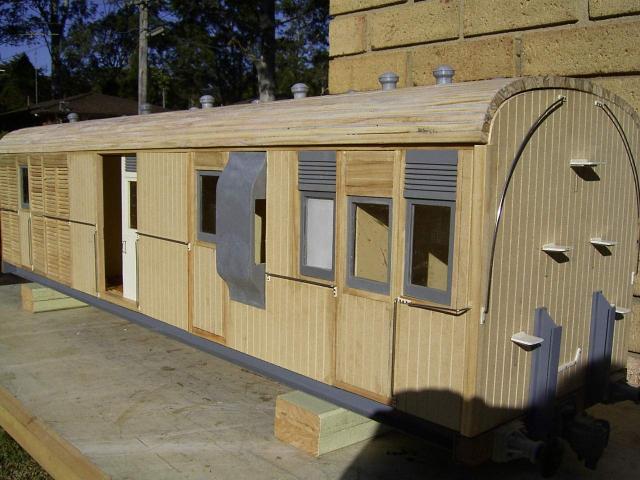

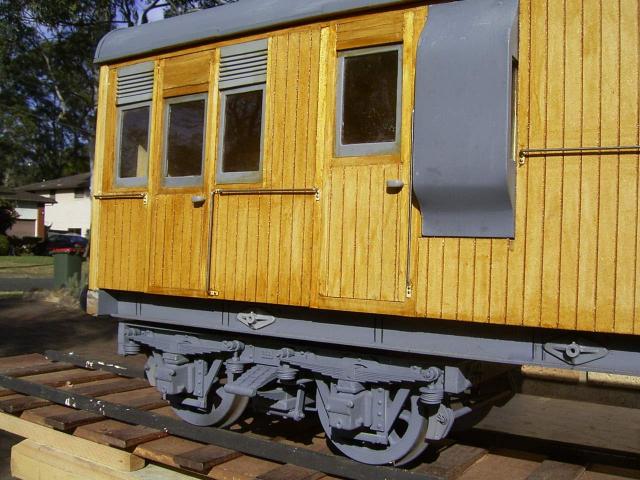

PHG Guards Van

This PHG was made with a mixture of wood and  Railcraft urethane products.  This photo was kindly supplied by Howard Armstrong

PHG Guards Van

This Guards Van was made with a mixture of wood and urethane.  This photo was kindly supplied by Howard Armstrong

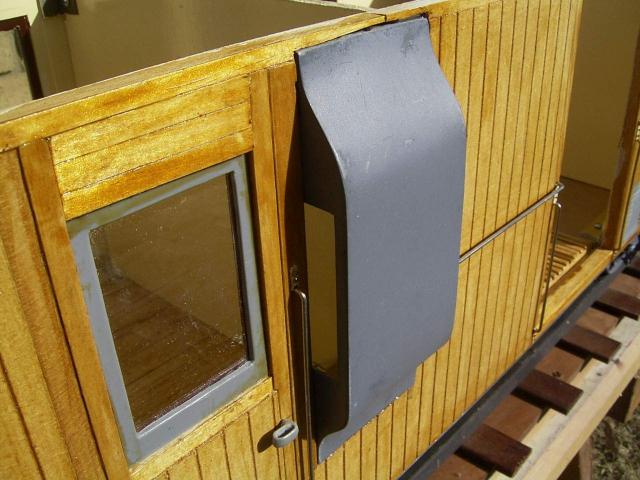

Brake Van Parts

This photo was kindly supplied by Howard Armstrong

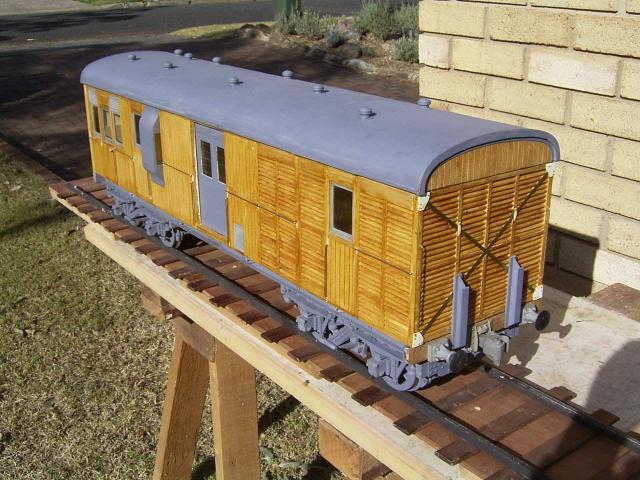

PHG Guards Van

This PHG Guards Van was made with a mixture of wood and Railcraft Products.  This photo was kindly supplied by Howard Armstrong

K Flat Wagon

The following photo's and details were supplied by Stephen Williams that show the progress of him building his K Flat Wagons.

Photo kindly supplied by Stephen Williams

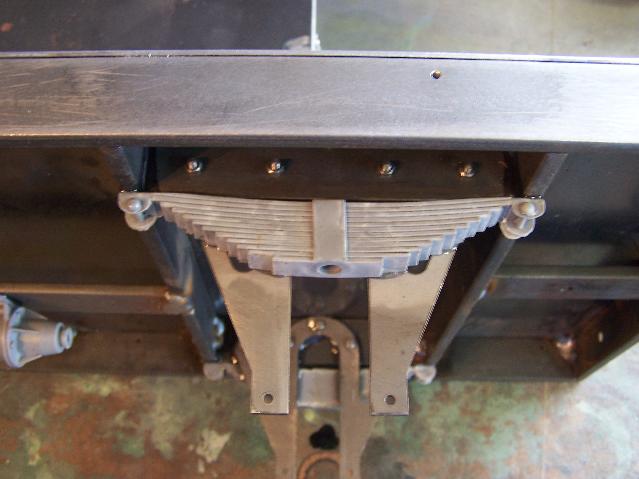

K Flat Wagon

The K Flat Wagon started with a sheet of 1/16 mild steel the same size as the deck and then build a frame of 25 x 6 mm mild steel, drilling all the holes for the w irons, tie down points etc before welding the frame together and onto  the deck sheet.  With the frame complete rivet on the coupler surrounds and the dummy corner brackets.  Next mount the W irons to the frame, make the axles and mount the wheels to them, fit the bearings and axle boxes and mount the lot to the wagon.

This photo kindly supplied by Stephen Williams

KF Wagon

This photo shows the deck of the K Flat Wagon.  The deck is made from about 50 pieces of 1/2 x 1/8 maple sawn from one plank about 4 inches wide and 4 foot long.

This photo was kindly supplied by Stephen Williams

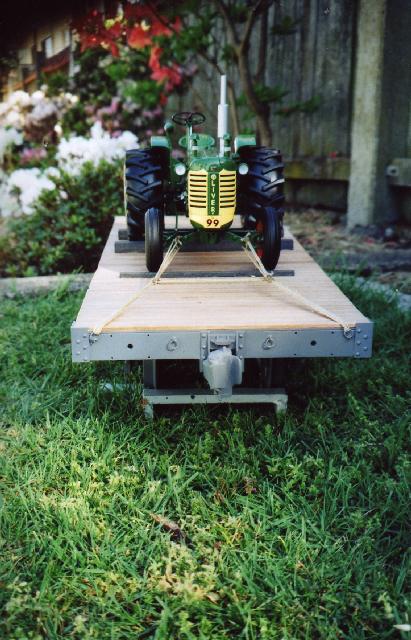

K Flat Wagon

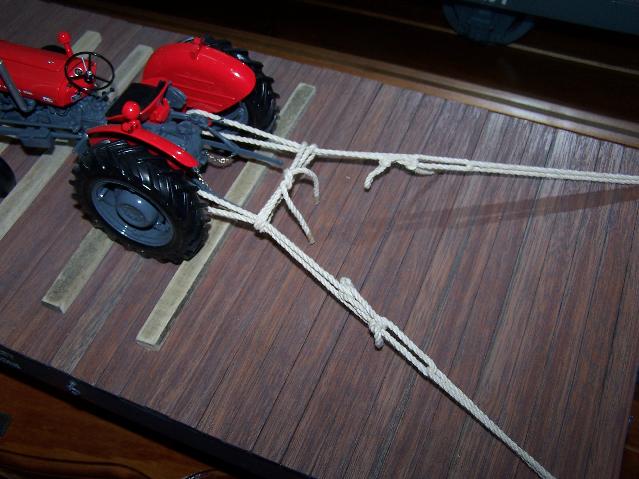

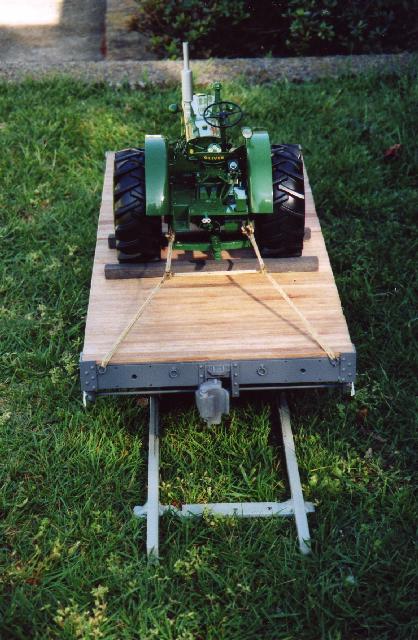

This photo shows the 1/12 scale tractor loaded on the K Flat Wagon made by Stephen Williams.  The tractor is held on with some scale rope that Stephen learned to make to make the load more authentic.

This photo was kindly supplied by Stephen Williams

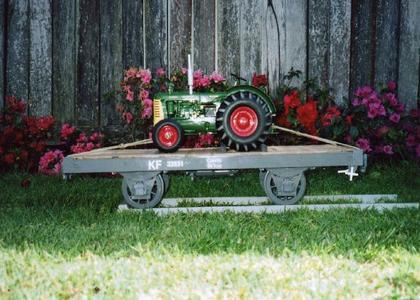

KF Wagon

This is a photo of a KF Wagon.  Three were built by Stephen Williams.  This is how the NSWGR transported tractors back in the 1950s.

This photo was kindly supplied by David May.

KF Wagon



This KF Wagon was built from Wood and assorted Raicraft Detail Parts.

This photo was kindly supplied by David May
